Gas Valves & Regulators
Our range of gas valves and regulators is engineered for precision flow control, safety, and compatibility across calibration, industrial, and analytical gas systems. The product line supports a wide range of inlet pressures, flow configurations, and connection standards, enabling selection based on exact application requirements.
.png)
01
Fixed flow regulators
-
provide non-adjustable, pre-set flow output, eliminating operator variability and ensuring consistent delivery in standardized processes.
From, these regulators are available in multiple configurations including compact, high-pressure, and mini variants. Technical Characteristics: 👉🏻Design: Single-stage regulator 👉🏻Flow Output: Fixed (factory-set as per requirement) 👉🏻Typical Flow Range: ~0.1 to 8.0 L/min 👉🏻Inlet Pressure Range: Standard: up to ~600 psig (40 bar) 👉🏻High-pressure: up to ~3000 psig (207 bar) 👉🏻Outlet Pressure: Typically, ~60 psig (~4.1 bar) 👉🏻Gauge Options: -With gauge -Without gauge (cost-efficient models) 👉🏻Connection Variants: - CGA600 (for disposable cylinders) - C10 connection - 1/8” NPT / compression fittings - Custom outlet configurations 👉🏻Material Variants: - Brass Nickel Plated - Stainless Steel (full SS construction for reactive gases) - Hybrid construction (SS body + brass internals) 👉🏻Key Selection Factors: - Fixed flow requirement (no adjustment needed) - Cylinder type (disposable vs refillable) - Space constraints (mini vs standard) - Pressure requirement (standard vs high pressure) 👉🏻Typical Use Cases: - Calibration gas cylinders - Continuous sampling systems - Field instrumentation
02

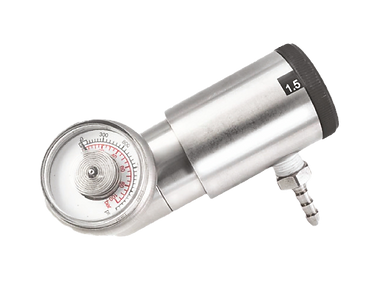

Dial flow regulators
-
are single-stage regulators with selectable preset flow rates, adjusted via a top-mounted dial mechanism. These are primarily used where repeatable calibration flow is required with the flexibility to switch between multiple flow rates.
Based on , these regulators are designed for both reactive and non-reactive gases, with multiple material and pressure configurations.
.png)
Technical Characteristics: 👉🏻Design: Single-stage pressure reduction 👉🏻Flow Control: Dial-based preset selection (multi-step flow settings) 👉🏻Typical Flow Ranges: - Low flow: ~0–0.3 L/min - Medium flow: up to ~3 L/min - High flow variants: up to ~8 L/min 👉🏻Inlet Pressure Range: - Standard: up to ~1200 psig (83 bar) - High-pressure: up to ~3000 psig (207 bar) 👉🏻Outlet Connection: Typically, 3/16" hose barb (~4.8 mm) 👉🏻Inlet Connection: C10 or 1/4" NPT (variant dependent) 👉🏻Gauge Options: Brass or stainless-steel gauges 👉🏻Material Variants: - Brass (Nickel Plated) – for non-reactive gases - Stainless Steel – for reactive/corrosive gases - Mixed construction (SS body + brass internals) 👉🏻Key Selection Factors: - Required flow range increments (fixed steps vs fine control) - Gas compatibility (reactive vs inert) - Inlet pressure rating (standard vs high pressure cylinders) - Connection type (C10 / NPT) 👉🏻Typical Use Cases: - Calibration gas delivery - Portable gas detector calibration - Controlled purge systems
.png)
03

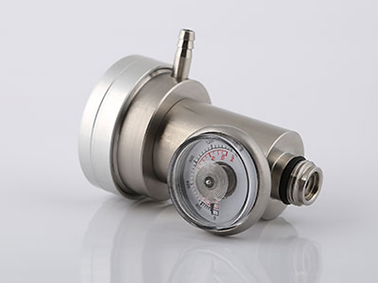

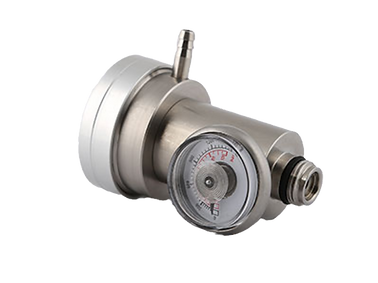

Demand flow regulators
-
deliver gas only when negative pressure is created by downstream equipment, making them ideal for pump-based analyzers and detectors.
As seen in , these regulators integrate automatic shut-off mechanisms, preventing unnecessary gas release.
Technical Characteristics: 👉🏻Operation: Demand-based (vacuum actuated) 👉🏻Shut-off: Automatic when no demand 👉🏻Vacuum Requirement: Typically 0 to ~3” H₂O (~5.6 mm Hg) 👉🏻Inlet Pressure Range: Standard: up to ~1200 psig High-pressure: up to ~3000 psig 👉🏻Outlet Connection: 3/16" hose barb 👉🏻Material Variants: - Brass Nickel Plated - Stainless Steel (for corrosive gases) - Aluminum anodized (lightweight option) 👉🏻Design Variants: - Standard demand regulators - High-pressure demand regulators - CGA-based connection models - Compact and angled outlet designs 👉🏻Key Selection Factors: - Type of instrument (pump-based vs passive) - Required inlet pressure range Gas compatibility - Mounting orientation / space 👉🏻Typical Use Cases: - Gas detection systems - Portable analyzers - Environmental monitoring
04
Vari Flow Gas Regulators
allows continuous adjustment of flow rates, unlike dial or fixed variants. These are ideal where fine tuning of flow is required instead of preset steps.
From, these regulators provide a wide adjustable range with stable output.
Technical Characteristics: 👉🏻Design: Single-stage regulator 👉🏻Flow Control: Continuous adjustable knob 👉🏻Flow Range: - Low to high range (~0 to 8 L/min depending on configuration) 👉🏻Inlet Pressure: Up to ~1200 psig 👉🏻Gauge: Integrated pressure gauge 👉🏻Material Variants: - Stainless Steel - Aluminum anodized (lightweight) 👉🏻Key Selection Factors: - Need for fine adjustment vs preset control - Flow range flexibility - Application sensitivity 👉🏻Typical Use Cases: - Laboratory testing - Analytical instrumentation - Calibration setups requiring variable flow
.png)
05

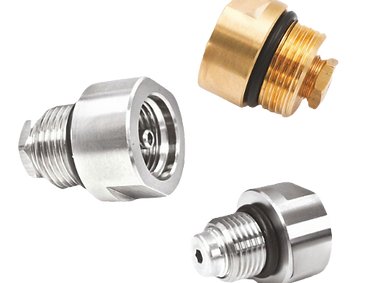

Gas Cylinder Valves (C10 Type)
-
self-closing valves designed for portable and refillable calibration gas cylinders, ensuring safe and controlled gas release.
-
From , these valves meet international compliance standards and are available with safety enhancements.
Technical Characteristics: 👉🏻Type: Self-closing valve 👉🏻Working Pressure: Up to ~1305 psig (90 bar) 👉🏻Thread Standards: - Inlet: 1” x 14 UN - Outlet: 5/8” x 18 UN 👉🏻Sealing Materials: Viton / Buna-N 👉🏻Variants: - Stainless steel (for reactive gases) - Brass (economical option) - Aluminum (lightweight) - Burst disc safety versions - Refillable & non-refillable types 👉🏻Key Selection Factors: - Cylinder type (refillable vs disposable) - Gas compatibility - Safety requirements (burst disc)
06

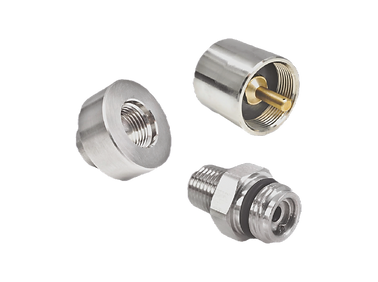

Gas Adaptors & Connectors
Adaptors enable interconnection between different gas standards, regulators, and cylinders, ensuring compatibility across systems.
From , these are designed for high-pressure applications with leak-tight sealing.
Technical Characteristics: 👉🏻Pressure Rating: Up to ~1200 PSI (and higher depending on model) 👉🏻Connection Types: - CGA 600 - C10 - 1/4” NPT (Male/Female) - Aerosol fittings 👉🏻Seal Materials:Viton/Buna-N 👉🏻Variants: - Straight adaptors - Filling adaptors - On/Off valve adaptors - Push-to-check adaptors - Male-to-female and cross adapters 👉🏻Key Selection Factors: - Connection compatibility - Pressure rating - Flow direction and control needs
07

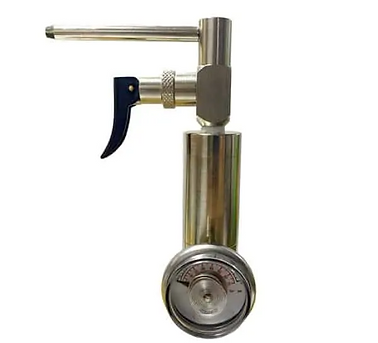

Trigger Gas Regulators
Are designed for manual, on-demand gas dispensing, where gas is released only when the trigger is pressed. This makes them ideal for short-duration calibration, bump testing, and portable gas detection applications, where controlled bursts of gas are required instead of continuous flow.
Based on , these regulators are specifically used with calibration gases and handheld gas detectors, ensuring precise and efficient gas usage.
Technical Characteristics: 👉🏻Design: Single-stage regulator with manual trigger mechanism 👉🏻Operation: Trigger-based gas release (on-demand manual control) 👉🏻Flow Type: Fixed flow (configured as per requirement) 👉🏻Typical Flow Range: ~0.1 to 8.0 L/min 👉🏻Inlet Pressure Range: Up to ~1200 psig (83 bar) 👉🏻Outlet Pressure: ~60 psig (~4.1 bar) 👉🏻Inlet Connection: C10 (5/8” x 18 UN) 👉🏻Outlet Connection: 6 mm straight tube 👉🏻Gauge: Brass gauge (0–1500 psig / 103 bar) 👉🏻Material Variants: - Brass Nickel-Plated body and cap - Brass piston construction - Stainless steel trigger mechanism - Sealing materials: Viton, Buna-N, Teflon 👉🏻Design Variants: - Fixed flow configurations based on application requirement - Standard C10 cylinder compatibility - Integrated pressure gauge models - Straight outlet tube configuration 👉🏻Key Selection Factors: - Requirement for manual vs automatic gas dispensing - Application type (bump testing, calibration, field use) - Flow requirement (short burst vs continuous supply) - Gas compatibility (primarily non-reactive gases) - Portability and ease of operation
Need help selecting the right configuration?
Share your gas type, pressure, and application — our team will recommend the exact model.
